eGrade Bolt
$2,200.00
- Ebikemotion 35+ with 250wh battery
- Shimano GRX40000 2×10 drivetrain
- WTB Nano 700x40c tires
Guarantee safe & secure checkout
Description
eGrade Bolt
Adding pedal aid to Bike Radar’s gravel bike of the year. Yep. With the MAHLE ebikemotion drive unit and the Grade’s floating seat stays, you’ll be comfortable and confident no matter what comes your way.
Frame
frame: Grade Alloy Triple Triangle frame, Ebikemotion specific design, Internal Battery, Tapered Head Tube
sizes available: SM, MD, LG
fork: GT Grade E-Carbon, 1.5″ Tapered Carbon Steerer, 12×100 Thru-Axle
wheel size: 700c
Wheels
rims: Shining, 32h
front hub: Formula, 12x100mm, 32H
rear hube: Bikemotion X35+, 32H
front tire: WTB Nano Comp, 700 x 40
rear tire: WTB Nano Comp, 700 x 40
Drivetrain
rear derailleur: Shimano GRX
shifters: Shimano GRX400, 10-speed
rear cogs: Shimano HG500, 11-34T
chain: KMC X10, 10-speed
crank: Shimano GRX, 46/30
bottom bracket: Shimano BSA RS500
chain device: Chain Guide
pedals: Not included
Cockpit
handlebar: GT Butted 6061 Alloy, 16° Flare Drop
stem: GT All Terra 3D Forged Alloy, 31.8
grips: GT Grip Bar Tape w/Gel, 3.5mm
headset: 1.5″ Lower to 1-1/8″ Upper w/ Reducer, 25mm Alloy Top Cap
seatpost: GT All Terra Two Bolt Alloy
saddle: Fabric Scoop Shallow/ Sport, Steel Rails
Brakes
brakes: Shimano GRX 400 Hydro Disc, 160/160mmRT56 Rotors
E-Bike
drive unit: MAHLE ebikemotion X35 250W
battery: MAHLE ebikemotion X35 250Wh
charger: X35 Charger
Geometry
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 458 | 505 | 553 | 600 |
| Seat tube angle effective | 73 ° | 73 ° | 73 ° | 73 ° |
| Top tube horizontal | 545 | 562 | 581 | 601 |
| Top tube actual | 523 | 542 | 562 | 585 |
| Head tube angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Standover | 741 | 782 | 822 | 862 |
| Head tube length | 124 | 150 | 183 | 214 |
| Wheelbase | 1062 | 1065 | 1086 | 1107 |
| Front center | 617 | 621 | 641 | 662 |
| Chainstay length | 455 | 455 | 455 | 455 |
| Bottom bracket drop | 75 | 75 | 75 | 75 |
| Bottom bracket height | 284 | 284 | 284 | 284 |
| Fork rake | 55 | 55 | 55 | 55 |
| Stack | 550 | 577 | 603 | 630 |
| Reach | 385 | 405 | 425 | 445 |
Quick Comparison

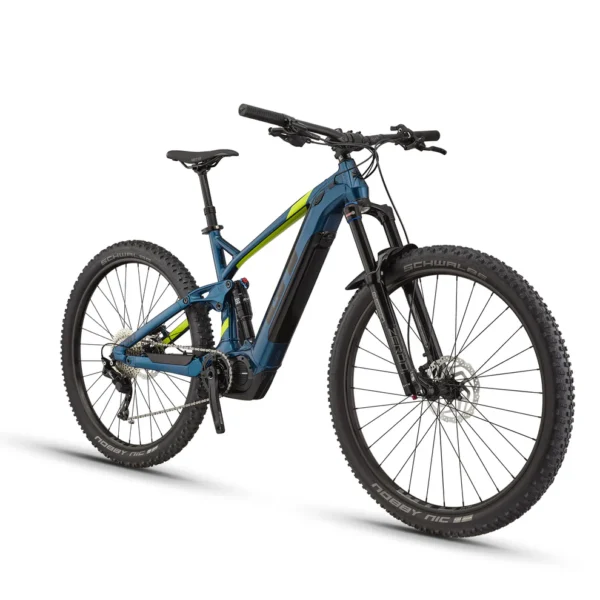

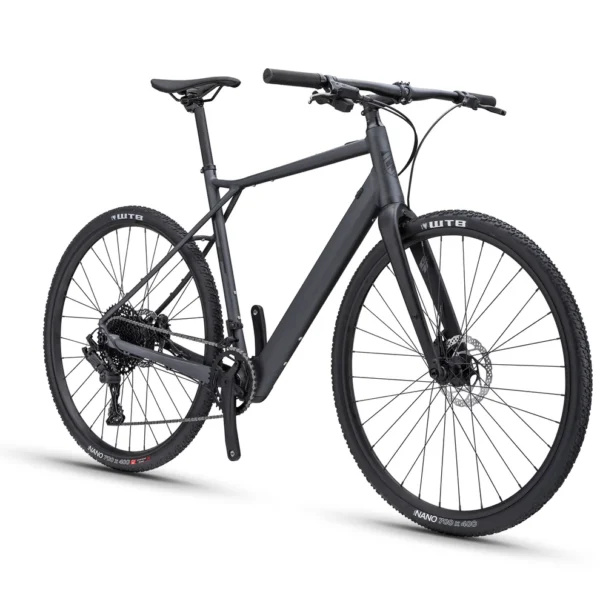

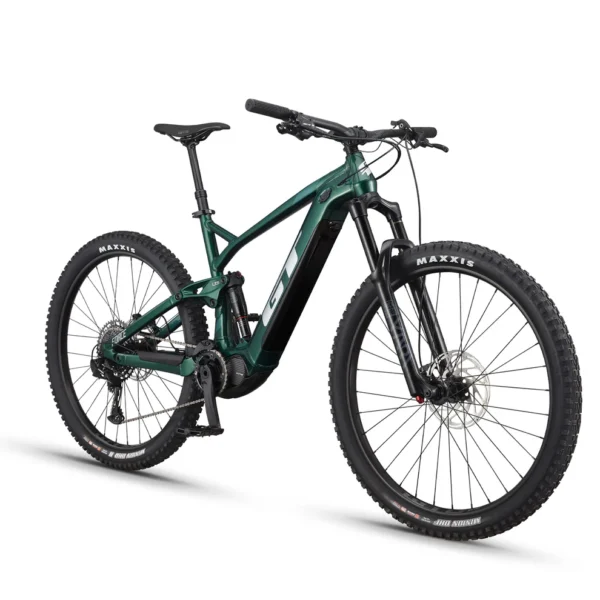

| eGrade Bolt remove | eGrade Current remove | eForce Current remove | eForce Amp+ remove | |
|---|---|---|---|---|
