Speed Series Expert
$455.00
- Speed Alloy Frame with Reverse Dropouts
- Speed Series Aero Double Wall rims
- Kenda Kompact Pro Race tires
Guarantee safe & secure checkout
Description

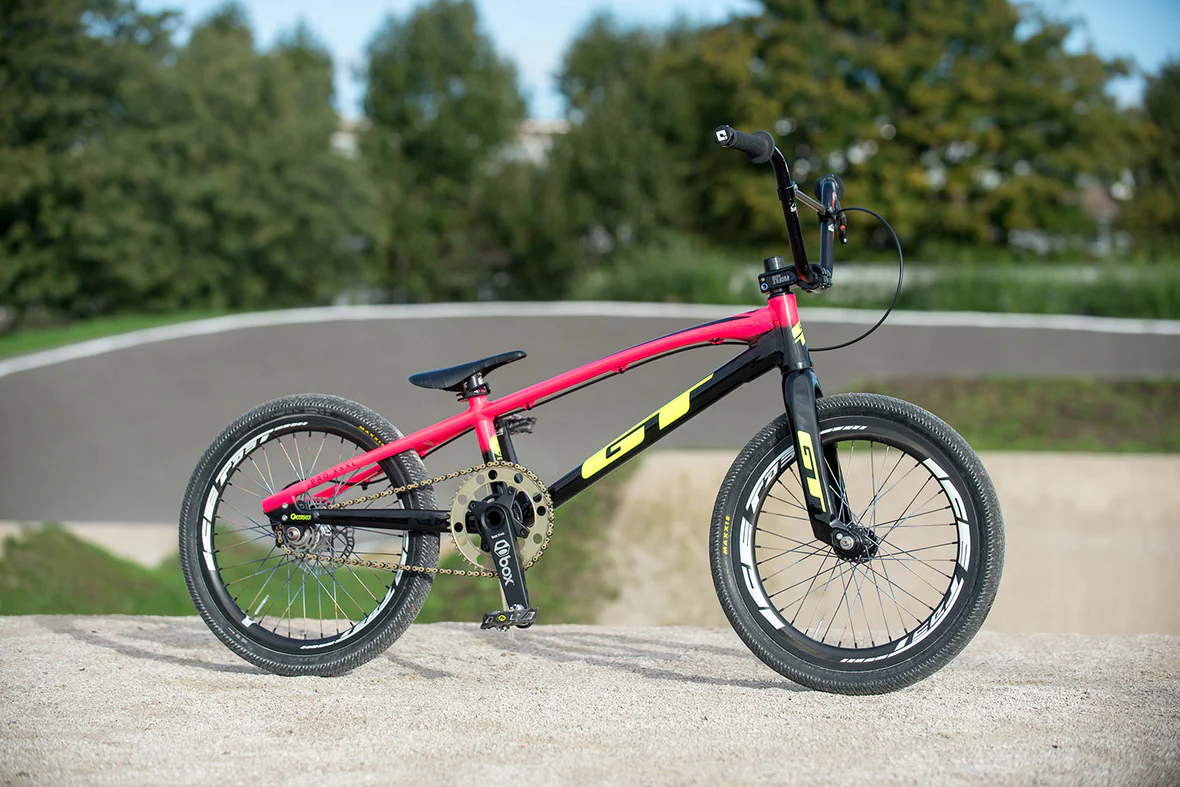

Speed Series Expert
Inspired by the Speed Series Pro models, with reverse rear dropouts for rapid gear changes. Each model size is purposefully built and specified to be lightweight while providing maximum performance to match each racer’s requirements. Ideal for cyclists who are 4’8″-5’4″ tall.
Frame
frameGT Speed Series MK7 Junior Race, 6061-T6 AL, Alloy Formed and Butted Speed Metal Tubes, Reverse Dropouts, Euro BB, 1-1/8″ Integrated H/T
sizes availableEXPERT
forkGT BMX Expert Race, 100% Cr-Mo 1-1/8″ Steerer, 312mm A/C, 3/8″ Dropouts
wheel size20
Wheels
rims: Alloy Double Wall, 28h
front hub: GT Speed Series, Alloy Sealed, 3/8″ Female Allen Bolt
rear hub: GT Speed Series, Alloy Sealed 3/8″ Female Allen Bolt Cassette
front tire: Kenda Kompact Pro Race 1-3/8″
rear tire: Kenda Kompact Pro Race 1-3/8″
spokes: Stainless Steel, 14g
Drivetrain
rear cogs: 16T Cog
chain: KMC Z1 Narrow, 3/32″
crank: GT Forged Alloy 2pc., 165mm Arms, 24mm Hollow/ Alloy Spindle, 104 BCD 42T AL CNC Chain Ring, Alloy Chain Ring Bolts
bottom bracket: EB24 Sealed Bearings
chain device: 6061 AL CNC Chain Tensioners
pedals: GT Mini Platform
Cockpit
handlebar: GT Speed Cr-Mo 6.5″H x 26″W, 8° Sweep, 4° Up, Taper Cross Bar
stem: GT Top Load, 40mm
grips: GT Statement
headset: 1-1/8″ Sealed Integrated (41.8 x 45)
seatpost: Integrated
saddle: BOX Echelon
Brakes
brakes: Promax MV-87, 85mm Cold Forged AL Arms, Mini V-Type
brake levers: Alloy V-type
Geometry
| Sizes (in) | Expert |
|---|---|
| Top tube actual | 19.5 |
| Head tube angle | 73 ° |
| Seat tube angle | 70 ° |
| Standover | 6.25 |
| Head tube length | 4 |
| Wheelbase | 35.3 |
| Front center | 21.7 |
| Chainstay length | 13.62 |
| Bottom bracket height | 11 |
| Seat post diameter | 22.2 |
| Dropouts | 10mm |
| Brake mounts | V-Brakes |
| Rider area | 21.1 |
| Bottom bracket type | BSA |
| Axle to crown | 12.1 |
| Fork rake | 1.3 |
Quick Comparison
| Speed Series Expert remove | Fueler 22 remove | Team Roskelley remove | Team Conway remove | Mach One Mini remove | Speed Series Pro XL 24 remove | |
|---|---|---|---|---|---|---|
| Name | Speed Series Expert remove | Fueler 22 remove | Team Roskelley remove | Team Conway remove | Mach One Mini remove | Speed Series Pro XL 24 remove |
| Image |  |  |  |  |  |  |
| SKU | ||||||
| Rating | ||||||
| Price | $455.00 | $275.00 | $310.00 | $310.00 | $345.00 | $499.00 |
| Stock | ||||||
| Weight | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A |
| Additional information | ||||||
| Description |
|
The Fueler 22 features the same full Cr-Mo frame, fork, and handlebar construction as our top-tier BMX models. Built with 22-inch wheels for added stability and a high-performance specification to keep the session going.
|
The Team line has a full chromoly frame, fork, and handlebar and is filled with GT aftermarket goodies for the advanced rider. Each model mirrors the listed pro's unique configuration, giving it the feel of a bespoke build without the custom price tag.
|
The Team line has a full chromoly frame, fork, and handlebar and is filled with GT aftermarket goodies for the advanced rider. Each model mirrors the listed pro's unique configuration, giving it the feel of a bespoke build without the custom price tag.
| Size
Entry to BMX Racing shouldn’t cost an arm and a leg. The Mach One Mini is made to fit a riders 4'6" & under.
| The Speed Series series of bikes incorporates our Speed Metal tubeset to save weight while keeping the rigidity required to take the hole shot. Equipped with disc brakes for quick stopping after the final sprint, and designed to give you the confidence to pursue the top step right out of the box. The Speed Series Pro is best suited for riders who are 5'6"-5'10", Pro XL for those who are 5'10"-6', and Speed Series Pro XXL for those who are 6' or taller.
|
| Add to cart |
