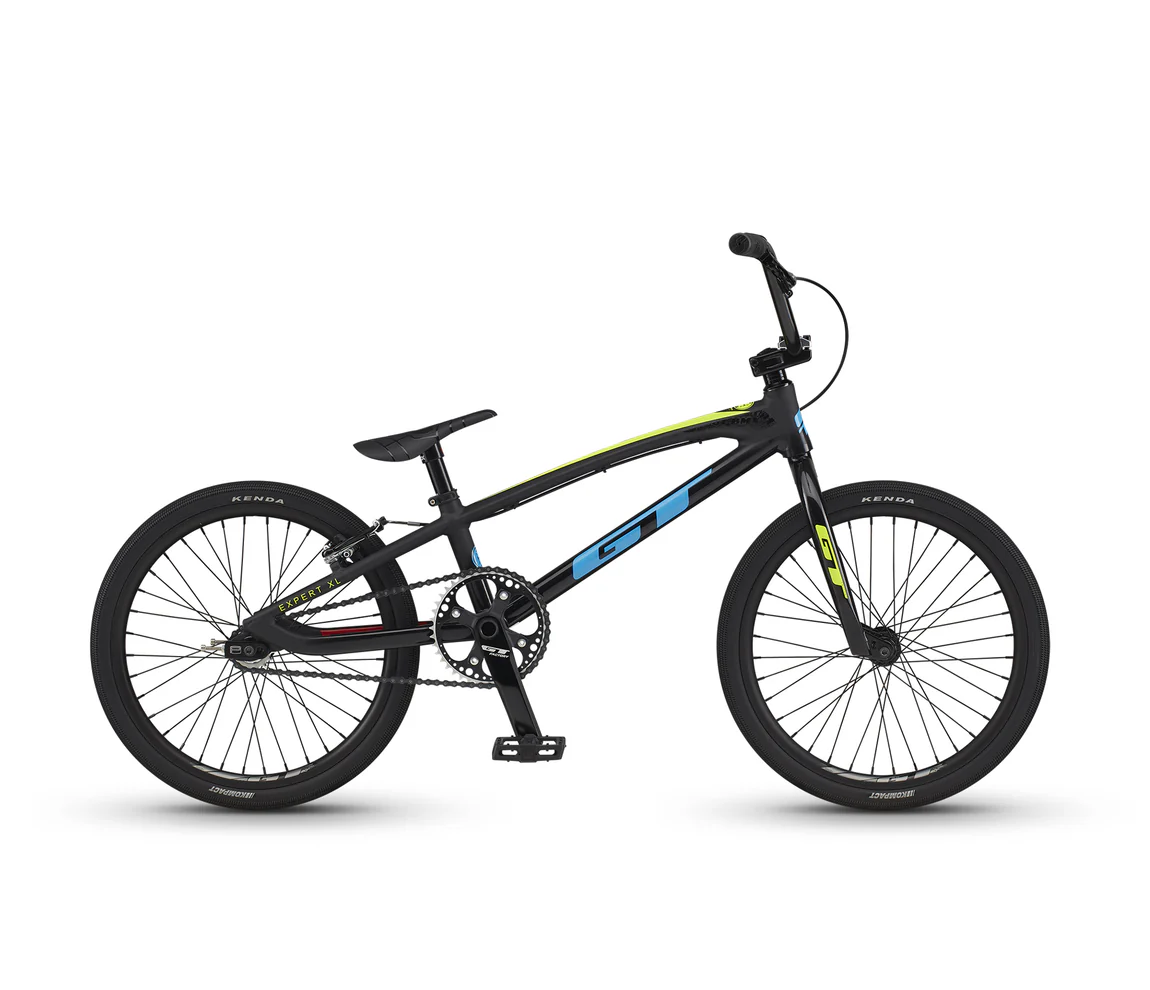

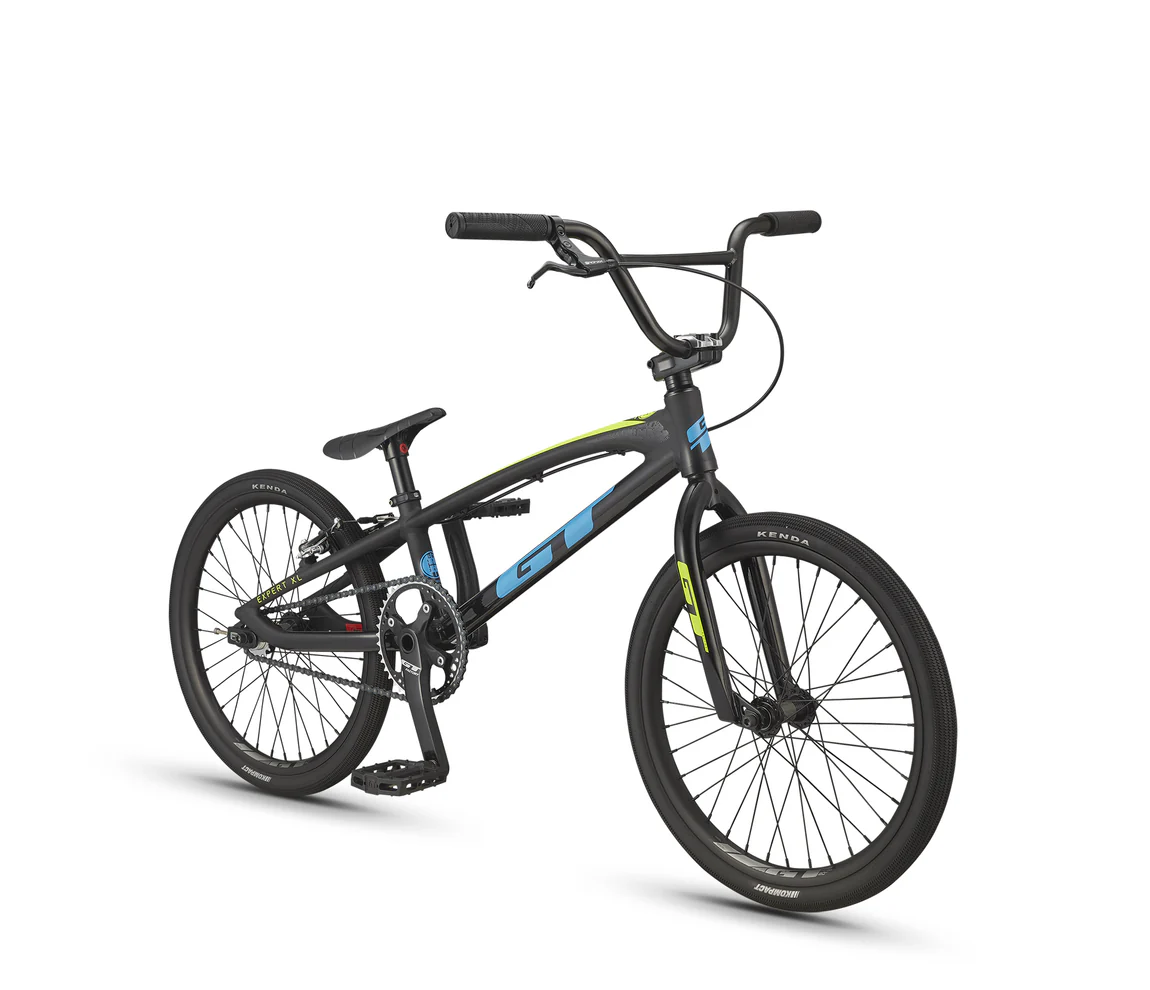

Speed Series Expert XL
$500.00
- Speed Alloy Frame with Reverse Dropouts
- Speed Series Aero Double Wall rims
- Kenda Kompact Pro Race tires
Guarantee safe & secure checkout
Description
Frame
frame: GT Speed Series MK7 Junior Race, 6061-T6 AL, Alloy Formed and Butted Speed Metal Tubes, Reverse Dropouts, Euro BB, 1-1/8″ Integrated H/T
sizes available: EXPERT XL
fork: GT BMX Pro Race, 100% Cr-Mo 1 1/8″ Steerer, Tapered Legs, 305mm A/C, 3/8″ Dropouts
wheel size: 20
Wheels
rims: Alloy Double Wall, 36h
front hub: GT Speed Series, Alloy Sealed, 3/8″ Female Allen Bolt
rear hub: GT Speed Series, Alloy Sealed 3/8″ Female Allen Bolt Cassette
front tire: Kenda Kompact Pro Race 1.5″
rear tire: Kenda Kompact Pro Race 1.5″
spokes: Stainless Steel, 14g
Drivetrain
rear cog: s16T Cog
chain: KMC Z1 Narrow, 3/32″
crank: GT Forged Alloy 2pc., 170mm Arms, 24mm Hollow/ Cr-Mo Spindle, 104 BCD 42T AL CNC Chain Ring, Alloy Chain Ring Bolts
bottom bracket: EB24 Sealed Bearings
chain device: 6061 AL CNC Chain Tensioners
pedals: GT Logo PC Platform
Cockpit
handlebar: GT Speed Cr-Mo 6.5″H x 26″W, 8° Sweep, 4° Up, Taper Cross Bar
stem: GT Top Load, 40mm
grips: GT Statement
headset; 1-1/8″ Sealed Integrated (41.8 x 45)
seatpost: Integrated
saddle: BOX Echelon
Brakes
brakes: Promax MV-87, 85mm Cold Forged AL Arms, Mini V-Type
brake levers: Alloy V-type
Geometry
| Sizes (in) | Expert XL |
|---|---|
| Top tube actual | 20 |
| Head tube angle | 73 ° |
| Seat tube angle | 70 ° |
| Standover | 6.4 |
| Head tube length | 4 |
| Wheelbase | 35.8 |
| Front center | 22.4 |
| Chainstay length | 13.62 |
| Bottom bracket height | 11.5 |
| Seat post diameter | 27.2 |
| Axel to crown | 12.5 |
| Dropouts | 10mm |
| Brake mounts | V-Brakes |
| Rider area | 21.44 |
| Bottom bracket type | BSA |
| Fork rake | 1.3 |
| Axel to crown | 12.5 |
Quick Comparison
| Speed Series Expert XL remove | Mach One 16 remove | Speed Series Expert remove | Performer 18 remove | Pro Series 29 remove | Fueler 22 remove | |
|---|---|---|---|---|---|---|
| Name | Speed Series Expert XL remove | Mach One 16 remove | Speed Series Expert remove | Performer 18 remove | Pro Series 29 remove | Fueler 22 remove |
| Image |  |  |  |  |  |  |
| SKU | ||||||
| Rating | ||||||
| Price | $500.00 | $320.00 | $455.00 | $350.00 | $495.00 | $275.00 |
| Stock | ||||||
| Weight | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A |
| Additional information | ||||||
| Description | Inspired by the Speed Series Pro models, with reverse rear dropouts for rapid gear changes. Each model size is purposefully built and specified to be lightweight while providing maximum performance to match each racer's requirements. Ideal for cyclists 5'2"-5'8".
| Size
Entry to BMX Racing shouldn’t cost an arm and a leg. Our smallest Mach One offering with 16" wheels. Ideal for a rider 3'6" & under.
|
|
Young rider’s skills are developing at earlier ages and it was time for the Performer 16 & 18 to do the same. Featuring an upgraded spec suitable for the beginner and advanced rider alike.
|
The first bike created specifically for the Bikelife movement was the Pro Series. Ultimate swerve control is made possible by the alloy frame's light weight and quick design. With features like a disc brake, double wall rims, a slotted 14mm rear axle, sealed hubs, and much more, this bike is made to keep you out of the toolbox and on the road.
|
The Fueler 22 features the same full Cr-Mo frame, fork, and handlebar construction as our top-tier BMX models. Built with 22-inch wheels for added stability and a high-performance specification to keep the session going.
|
| Add to cart |
