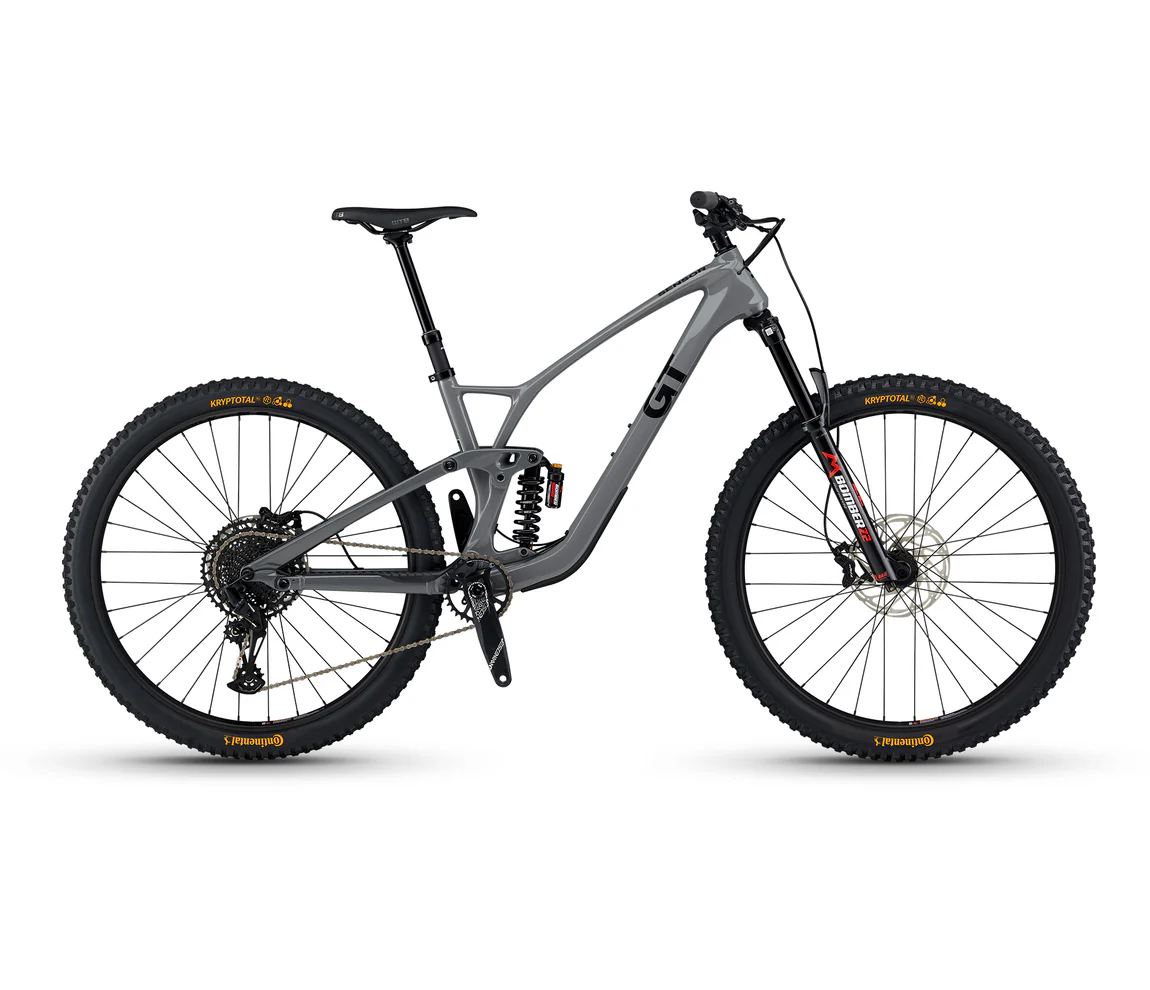

Sensor Carbon Elite
$1,799.00
Sensor Carbon Elite is content to simply point and play on everything from gnarly hills to gorgeous berms. A combination of progressive geometry, major frame modifications, and a more lively and lighter frame will push you deeper into the trails. Durable Marzocchi suspension will eat up any clunky features that get in the way. And to ensure you don’t miss a single day of dirt, we’ve outfitted this trail rig with low-maintenance components and high-value features, allowing you to get even more shred for your money.
- Marzocchi Bomber Z2, 150mm fork
- Marzocchi Bomber CR Coil rear shock
- SRAM SX drivetrain
Guarantee safe & secure checkout
Description
Sensor Carbon Elite
Trail-Tuned Geometry
Sensor’s shape, designed to maximize good times on the trail, inspires riders to take their fun to the next level. Its 65-degree headtube angle keeps it stable on descents, while the sharp 77-degree seattube angle makes climbing easy.
System Optimized
Sensor loses 600g in weight thanks to an all-new carbon front triangle, a carbon seat stay, and some very smart design, but it still handles any trail. Sensor features tube-in-tube cable routing, which maintains the lines clean while making maintenance simple and straightforward.
LTS Suspension
Linkage Tuned Suspension offers a steady and economical suspension foundation. The 4-bar system is intended to be a highly adjustable suspension platform that maintains ground-hugging traction even under hard braking.
Frame
frame: Sensor Carbon 29” Frame, 140mm Travel, 12x148mm Thru-Axle, UDH
sizes available: SM, MD, LG, XL
fork: Marzocchi Bomber Z2, 150mm, 15x110mm, 44mm Offset
rear shock: Marzocchi Bomber CR Coil, 185x55mm Trunnion
wheel size: 29
Wheels
rims: WTB ST i30 TCS 2.0, 32h, Tubeless Ready
front hub: Formula, 15x110mm
rear hub: Formula, 12x148mm, HG Freehub Body
front tire: Continental Kryptotal Fr, 29×2.4″, Trail Endurance
rear tire: Continental Kryptotal Re, 29×2.4″, Trail Endurance
Drivetrain
rear derailleur: SRAM SX Eagle
shifters: SRAM SX Eagle, 12-Speed
rear cogs: SRAM PG-1210, 11-50T
chain: SRAM SX Eagle, 12-Speed
crank: Truvativ Descendant 6K, DUB, 32T
bottom bracket: SRAM DUB BSA, 73mm
Cockpit
handlebar: GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back (Width: S/M/L/XL – 80cm)
stem: GT Alloy, 45mm
grips: GT Mushroom
headset: FSA No.42
seatpost: GT DropKick, 31.6mm, (S – 125mm, M – 150mm, L/XL – 170mm)
saddle: WTB Silverado
Brakes
brakes: TRP Slate EVO T4, 203/180mm Rotors
Geometry
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 380 | 400 | 420 | 460 |
| Top tube horizontal | 574 | 601 | 628 | 666 |
| Top tube actual | 542 | 565 | 591 | 623 |
| Head tube angle | 65.0 ° | 65.0 ° | 65.0 ° | 65.0 ° |
| Seat tube angle | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° |
| Standover | 715 | 725 | 735 | 745 |
| Head tube length | 110 | 120 | 130 | 140 |
| Stem length | 40 | 40 | 40 | 40 |
| Wheelbase | 1191 | 1221 | 1250 | 1289 |
| Front center | 754 | 783 | 812 | 851 |
| Chainstay length | 440 | 440 | 440 | 440 |
| Crank length | 170 | 170 | 175 | 175 |
| Bottom bracket drop | 36 | 36 | 36 | 36 |
| Bottom bracket height | 344 | 344 | 344 | 344 |
| Fork rake | 44 | 44 | 44 | 44 |
| Trail | 128 | 128 | 128 | 128 |
| Stack | 624 | 633 | 642 | 651 |
| Reach | 430 | 455 | 480 | 515 |
| Travel front | 150 | 150 | 150 | 150 |
| Travel rear | 140 | 140 | 140 | 140 |
Quick Comparison
| Sensor Carbon Elite remove | Force Carbon Pro remove | Sensor Carbon Pro LE remove | Zaskar FS Sport remove | Avalanche Expert remove | LaBomba remove | |
|---|---|---|---|---|---|---|
| Name | Sensor Carbon Elite remove | Force Carbon Pro remove | Sensor Carbon Pro LE remove | Zaskar FS Sport remove | Avalanche Expert remove | LaBomba remove |
| Image | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
| SKU | ||||||
| Rating | ||||||
| Price | $1,799.00 | $2,445.00 | $2,450.00 | $1,250.00 | $1,300.00 | $1,800.00 |
| Stock | ||||||
| Weight | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A |
| Additional information | ||||||
| Description |
Sensor Carbon Elite is content to simply point and play on everything from gnarly hills to gorgeous berms. A combination of progressive geometry, major frame modifications, and a more lively and lighter frame will push you deeper into the trails. Durable Marzocchi suspension will eat up any clunky features that get in the way. And to ensure you don't miss a single day of dirt, we've outfitted this trail rig with low-maintenance components and high-value features, allowing you to get even more shred for your money.
| The rougher the ride, the smoother it remains. Lap after lap, the Force Carbon Pro demonstrates that it's comfortable whether you choose inventive or questionable line choices. This revised long-travel, idler-enhanced Enduro bike's balanced geometry caters to your demand for gravity and large terrain, while also providing effective climbing capabilities that will leave you stoked, not smoked, at the top. RockShox suspension, SRAM GX/NX Eagle drivetrain, and an adjustable rear center for enhanced stability and agility provide plenty of reasons to push it harder. |
Sensor Carbon Pro LE is a true trail bike, ready to savor all of the tastes and nuances of any terrain, up or down. With a new, optimized frame design, this steed is substantially lighter than its predecessor and more suited to a wider spectrum of riders. With its 29" wheels, 140mm travel, and improved geometry, you'll be sizing up new lines on old trails, increasing your creative capacity and control on lengthy, backcountry expeditions or brief lunch break loops. Smooth is fast with RockShox's Ultimate level suspension, SRAM's seamless X01 drivetrain, and stealthy frame elements that keep the ride quiet. When there's nothing to stop you, going fast is enjoyable.

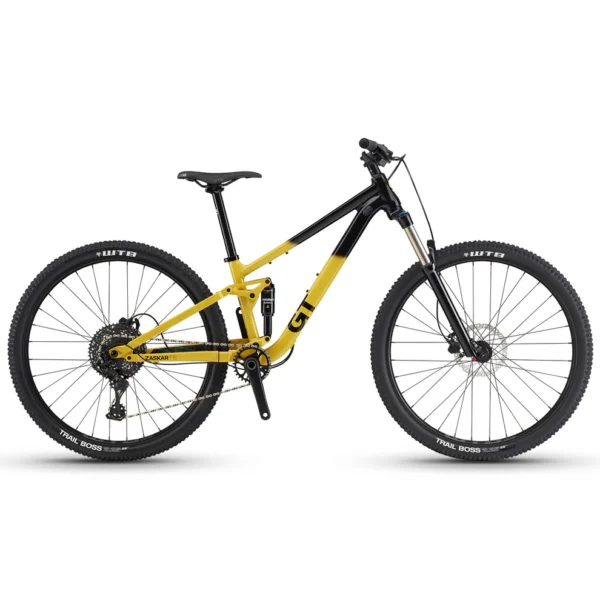

| Riders who are new to the sport of mountain biking require a bike that can transport them anywhere and ride anything. They are searching for a riding performance that is focused on the enjoyment of mountain biking. They're seeking for the Zaskar FS Sport. Great performance specifications, like as the Micro SHIFT 10-speed transmission and SR Suntour suspension, serve as a reminder that just because the new Zaskar FS Sport isn't expensive doesn't mean it can't ride like one.
| The Avalanche is outfitted with the most capable components, instilling confidence and progress on the terrain. The dropper-post compatible frame and tubeless ready rims will allow you to enjoy singletrack, climb difficult terrain, and push your boundaries on the descent. |

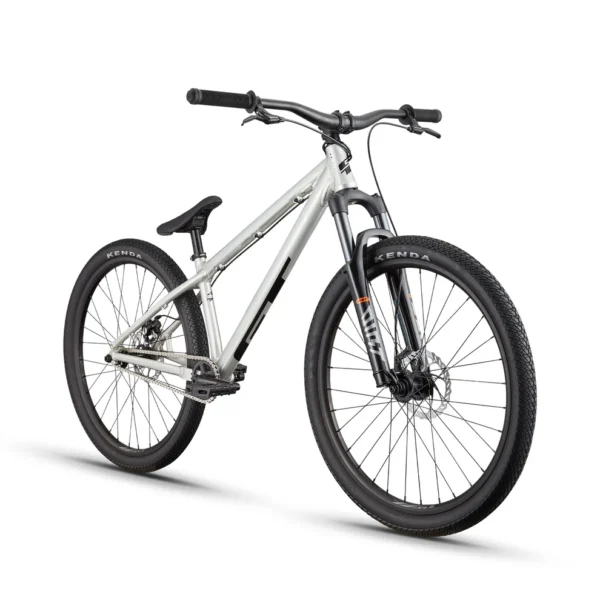

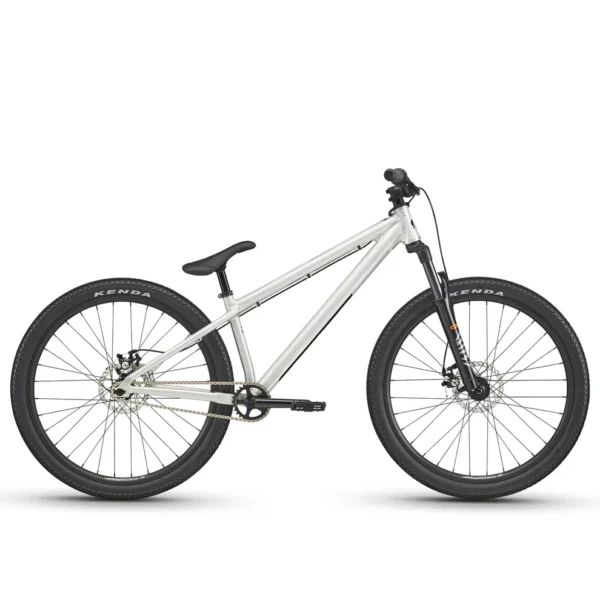

Designed to be a dirt jumper you'll be pleased to destroy right out of the box. The LaBomba's lightweight aluminum frame has ultra-responsive geometry and integrated chain tensioners to keep everything running smoothly. A 100mm RST travel fork smoothes out harsh knocks, and a selection of GT BMX aftermarket favorites assures you'll turn heads on every lap. Whether it's the jump park, pump track, or skatepark, the LaBomba is ready for anything.
|
