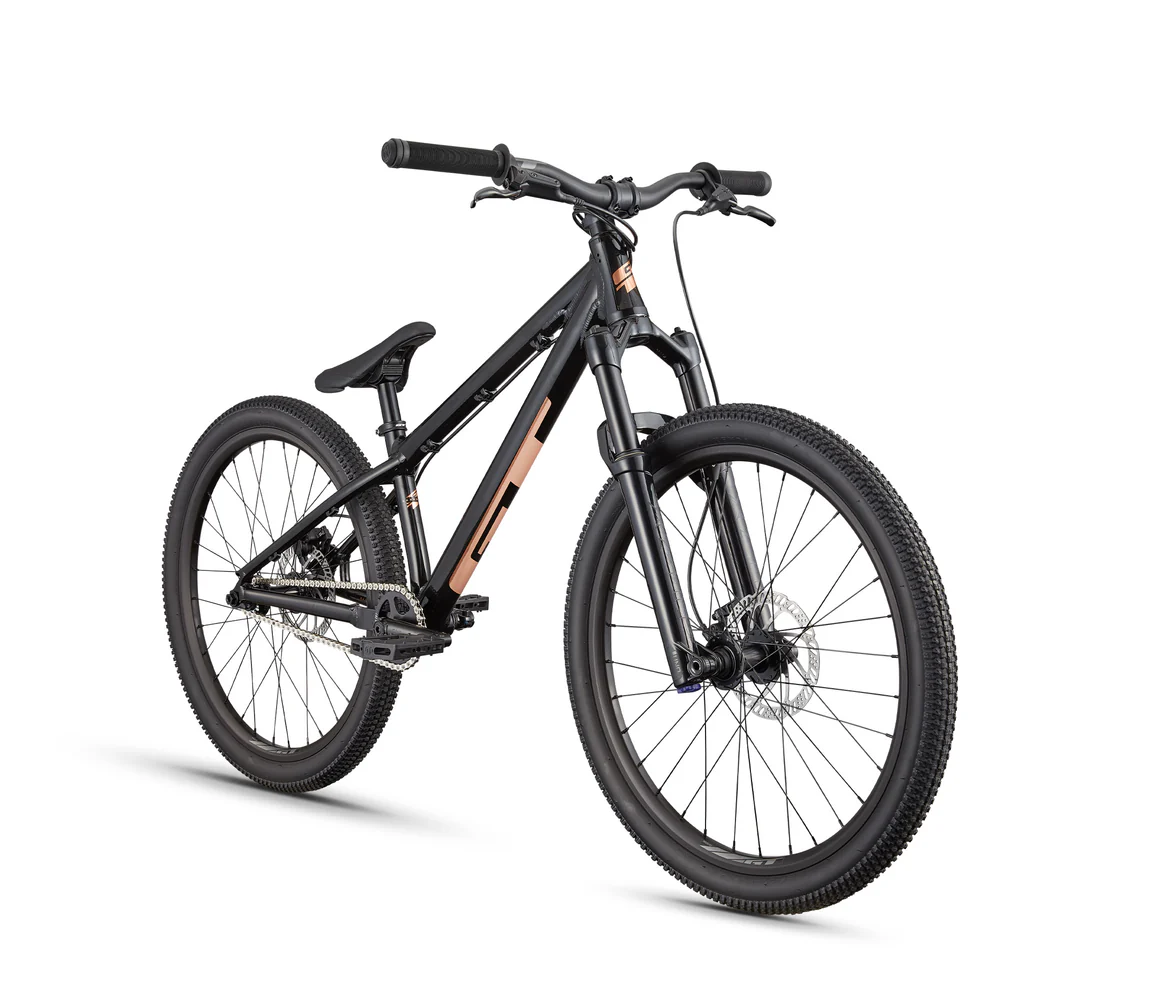

LaBomba 24

$1,950.00

Small in stature, yet great on style. The LaBomba 24 has been shrunk down for next-generation rippers. The La Bomba 24 is equipped with an ultra-responsive alloy frame, Manitou Machete J-Unit suspension fork, and 140mm GT Power Series Cr-Mo cranks, making it ideal for ripping at the skatepark, pump track, and local jumps.
  • Manitou Machete J-Unit, 32mm, 6066 Alloy Stanchions, 100mm Travel, 110x15mm Boost
  • GT Power Series 3pc Cr-Mo Cranks
  • Kenda Small Block Eight Tires/ Double Wall Rims
Add to cart
Guarantee safe & secure checkout
Guarantee & safe checkout
On all order
Categories : ,

Description

LaBomba 24

Frame

frame: 6061 Aluminum, BSA BB, Disc Brake Mount, Integrated 1-1/8″-1.5″ Taper H/T, 3/8″ Horizontal Adjustable Dropout w/ Integrated Chain Tensioners

sizes available: One Size

fork: Manitou Machete J-Unit, Air Spring w/ Rebound Adjust, 15mm Thru Axle Dropout, 1-1/8″-1.5″ Taper AL Steerer, Pre Load Adjust, Black Stanchions

wheel size: 24

Wheels

rims: Alloy Double Wall, 32h

front hub: Sealed Alloy Disc, 15×110 Boost

rear hub: Alloy Disc Body, Sealed Bearings, 32 Hole, 3/8″ x 17mm Female Bolt

front tire: Kenda Small Block Eight 2.10″

rear tire: Kenda Small Block Eight 2.10″

spokes: Stainless Steel, 14g

Drivetrain

rear cogs: 13T Cog

chain: KMC HL1 Wide

crank: GT Power Series 3pc Chromoly 140mm, 19mm x 8T Spindle, GT NBS 28T Alloy Chainwheel

bottom bracket: BSA Sealed

pedals: GT Logo PC Platform

Cockpit

handlebar: GT Alloy Riser Bar, 30mm Rise, 650mm Wide, 5° Up, 9° Back

stem: GT 3D Forged Alloy Stem 35mm, 31.8mm Clamp

grips: GT Super Soft Flanged

headset: 1-1/8-1.5″ Taper Sealed Integrated, (45)

seatpost: Alloy Pivotal 27.2 x 200mm

saddle: GT Pivotal Slim Padded

Brakes

brakes: Hydro Disc, 160mm Rotor (F/R)

brake levers: Brake Levers Alloy, 2 Finger Hydro

Geometry

Sizes (mm) One Size
Seat tube length 290
Seat tube angle effective 75.6 °
Top tube horizontal 525
Top tube actual 520
Head tube angle 68.5 °
Standover 640
Head tube length 110
Wheelbase 986
Front center 623
Chainstay length 353
Bottom bracket drop 10
Bottom bracket height 290
Dropouts 10mm
Fork rake 40
Trail 83
Stack 519
Reach 375
Travel front 100

Quick Comparison

LaBomba 24 removeForce Comp removeSensor Carbon Pro LE removeZaskar FS Sport removeeForce Amp+ removeLaBomba 26 Frame remove
NameLaBomba 24 removeForce Comp removeSensor Carbon Pro LE removeZaskar FS Sport removeeForce Amp+ removeLaBomba 26 Frame remove
ImageLaBomba 24Force CompSensor Carbon Pro LEZaskar FS SporteForce Amp+LaBomba 26 Frame
SKU
Rating
Price$1,950.00$2,500.00$2,450.00$1,250.00$1,800.00$900.00
Stock
WeightN/AN/AN/AN/AN/AN/A
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
Description
Small in stature, yet great on style. The LaBomba 24 has been shrunk down for next-generation rippers. The La Bomba 24 is equipped with an ultra-responsive alloy frame, Manitou Machete J-Unit suspension fork, and 140mm GT Power Series Cr-Mo cranks, making it ideal for ripping at the skatepark, pump track, and local jumps.
  • Manitou Machete J-Unit, 32mm, 6066 Alloy Stanchions, 100mm Travel, 110x15mm Boost
  • GT Power Series 3pc Cr-Mo Cranks
  • Kenda Small Block Eight Tires/ Double Wall Rims
Developed for riders that seek out big hits and a lot of gravity. The all-new Force is built for the fun of it.
  • Fox Float 38 170mm Fork
  • Fox Float DPX2 Rear Shock
  • Shimano Deore 12-speed Drivetrain
Sensor Carbon Pro LE is a true trail bike, ready to savor all of the tastes and nuances of any terrain, up or down. With a new, optimized frame design, this steed is substantially lighter than its predecessor and more suited to a wider spectrum of riders. With its 29" wheels, 140mm travel, and improved geometry, you'll be sizing up new lines on old trails, increasing your creative capacity and control on lengthy, backcountry expeditions or brief lunch break loops. Smooth is fast with RockShox's Ultimate level suspension, SRAM's seamless X01 drivetrain, and stealthy frame elements that keep the ride quiet. When there's nothing to stop you, going fast is enjoyable.
  • RockShox Lyrik Ultimate RC2, 150mm fork
  • RockShox Super Deluxe Ultimate RC2T rear shock
  • SRAM X01 drivetrain
Riders who are new to the sport of mountain biking require a bike that can transport them anywhere and ride anything. They are searching for a riding performance that is focused on the enjoyment of mountain biking. They're seeking for the Zaskar FS Sport. Great performance specifications, like as the Micro SHIFT 10-speed transmission and SR Suntour suspension, serve as a reminder that just because the new Zaskar FS Sport isn't expensive doesn't mean it can't ride like one.
  • SR Suntour XCR34, 130mm fork
  • SR Suntour Raidon rear shock
  • MicroSHIFT Advent X, 10-speed
The Force Amp+ is equipped with GT's e-tuned LTS platform, Shimano's STEPS EP8 Drive Unit, Shimano 630Wh Battery, 29" wheels, 150mm of travel, and RockShox suspension, making it a powerful trail bike.
  • Shimano STEPS EP8 Drive Unit
  • Shimano BT-8036 630Wh Battery
  • SRAM SX Eagle Drivetrain
The LaBomba is our bombproof dirt jump frame, with ultra-responsive geometry to get you in the air and making shapes. The frame is designed to be a build-and-rip platform, with adjustable dropouts and an integrated chain tensioner. The headtube is pre-drilled and Gyro ready. Build it with your favorite 26" wheels and take to the skies.
